Solder Stencils, Templates

Solder Stencils and Templates are a mask that is used to apply solder paste in a specific area on a PCB board. The stencil types are BGA, CSP, DFN, DFN/SON, FPC/FFC, HSOP, HTQFP, HTSSOP, LED, LED/DFN, LED/PLCC, LGA, LLP, LQFP, LSOP, mini SOIC, MLP/DFN, MLP/MLF, MQFP, MSOP, PLCC, PLCC/JLCC, POS, PowerQSOP, PowerSOIC, PowerSSO, PowerSSOP, PQFP, PSOP, QFN, QFN/LFCSP, QSOP, RN, RQFP, SOIC, SON, SOP, SOT/SC, SSOP, TO/DDPAK, TO/DPAK, TQFP, TSOC, TSOP, TSSOP, TVSOP, uMAX, VSOP, and VSSOP.

---

Chip Quik, Inc. IPC0192-S

QFN-36/LFCSP-36 (5 CENTER PADS)

12.93

Chip Quik, Inc. IPC0191-S

RN42 (1.2MM PITCH, 25.8X13.4MM B

12.93

Chip Quik, Inc. IPC0190-S

RN4020 (1.2MM PITCH, 19.5X11.5MM

12.93

Chip Quik, Inc. IPC0188-S

QFN-28/LFCSP-28 (0.65MM PITCH, 6

12.93

Chip Quik, Inc. IPC0139-S

TQFP-80 (0.8MM PITCH, 14X20MM BO

12.93

Chip Quik, Inc. PA0220-S

TQFP-144 (0.4MM PITCH, 16X16MM B

11.59

Chip Quik, Inc. PA0205-S

RQFP-240 (0.5MM PITCH, 32X32MM B

11.59

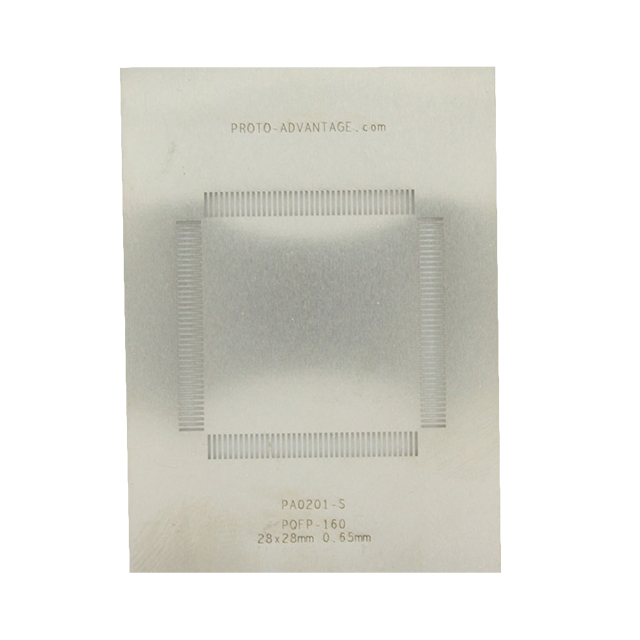

Chip Quik, Inc. PA0201-S

PQFP-160 (0.65MM PITCH, 28X28MM

11.59
