Solder Stencils, Templates

Solder Stencils and Templates are a mask that is used to apply solder paste in a specific area on a PCB board. The stencil types are BGA, CSP, DFN, DFN/SON, FPC/FFC, HSOP, HTQFP, HTSSOP, LED, LED/DFN, LED/PLCC, LGA, LLP, LQFP, LSOP, mini SOIC, MLP/DFN, MLP/MLF, MQFP, MSOP, PLCC, PLCC/JLCC, POS, PowerQSOP, PowerSOIC, PowerSSO, PowerSSOP, PQFP, PSOP, QFN, QFN/LFCSP, QSOP, RN, RQFP, SOIC, SON, SOP, SOT/SC, SSOP, TO/DDPAK, TO/DPAK, TQFP, TSOC, TSOP, TSSOP, TVSOP, uMAX, VSOP, and VSSOP.

---

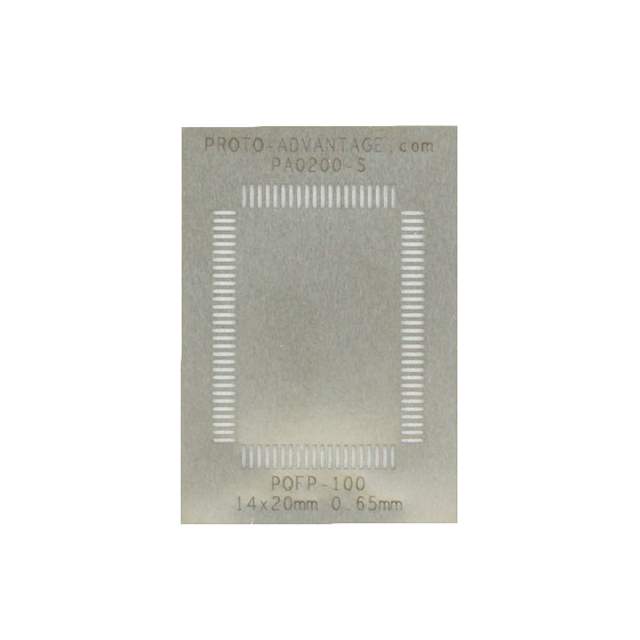

Chip Quik, Inc. PA0200-S

PQFP-100 (0.65MM PITCH, 14X20MM

11.59

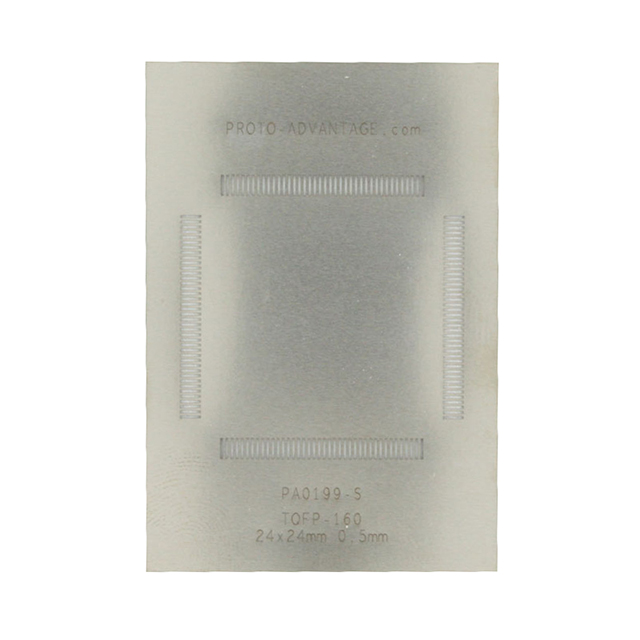

Chip Quik, Inc. PA0199-S

TQFP-160 (0.5MM PITCH, 24X24MM B

11.59

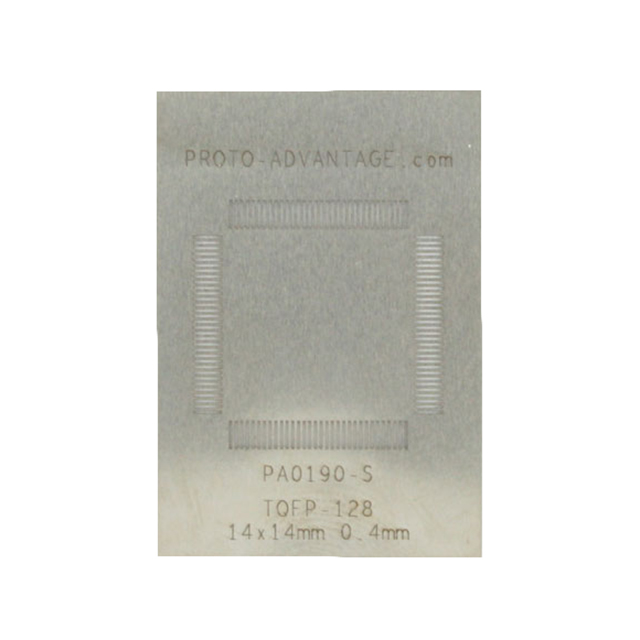

Chip Quik, Inc. PA0190-S

TQFP-128 (0.4MM PITCH, 14X14MM B

11.59

Chip Quik, Inc. PA0189-S

LQFP-176 (0.5MM PITCH, 24X24MM B

11.59

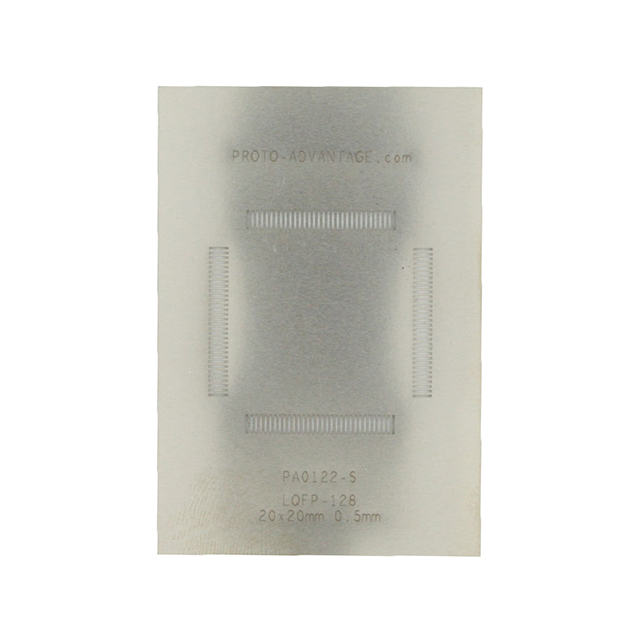

Chip Quik, Inc. PA0122-S

LQFP-128 (0.5MM PITCH, 20X20MM B

11.59

Chip Quik, Inc. PA0121-S

LQFP-128/PQFP-128 (0.5MM PITCH,

11.59

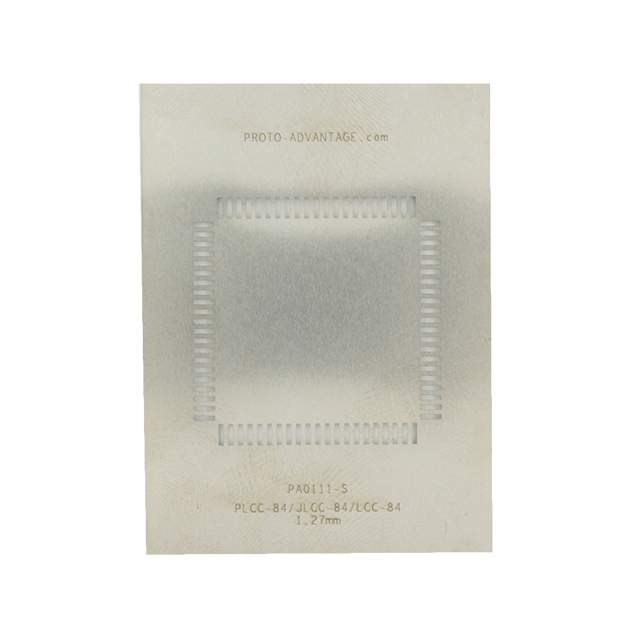

Chip Quik, Inc. PA0111-S

PLCC-84/JLCC-84/LCC-84 (1.27MM P

11.59

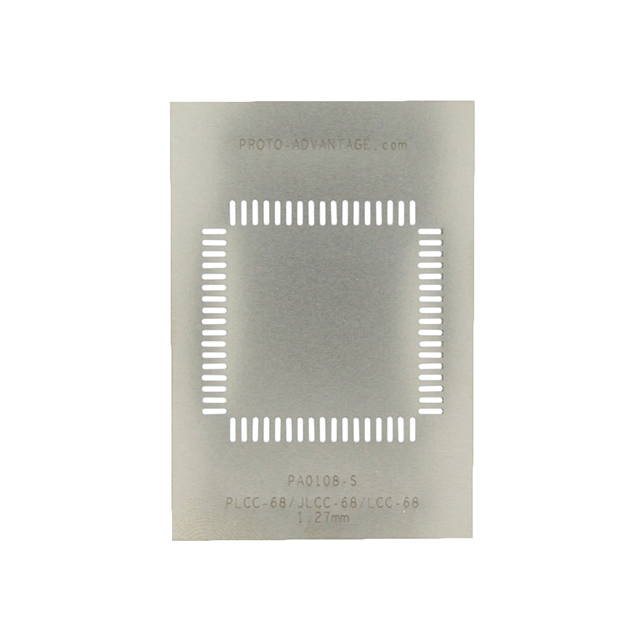

Chip Quik, Inc. PA0108-S

PLCC-68/JLCC-68/LCC-68 (1.27MM P

11.59
