Solder Stencils, Templates

Solder Stencils and Templates are a mask that is used to apply solder paste in a specific area on a PCB board. The stencil types are BGA, CSP, DFN, DFN/SON, FPC/FFC, HSOP, HTQFP, HTSSOP, LED, LED/DFN, LED/PLCC, LGA, LLP, LQFP, LSOP, mini SOIC, MLP/DFN, MLP/MLF, MQFP, MSOP, PLCC, PLCC/JLCC, POS, PowerQSOP, PowerSOIC, PowerSSO, PowerSSOP, PQFP, PSOP, QFN, QFN/LFCSP, QSOP, RN, RQFP, SOIC, SON, SOP, SOT/SC, SSOP, TO/DDPAK, TO/DPAK, TQFP, TSOC, TSOP, TSSOP, TVSOP, uMAX, VSOP, and VSSOP.

---

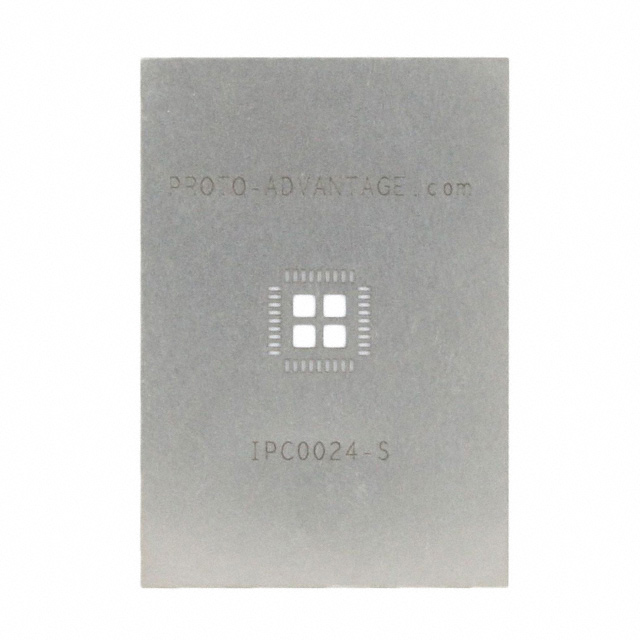

Chip Quik, Inc. IPC0024-S

QFN-36 STENCIL

11.59

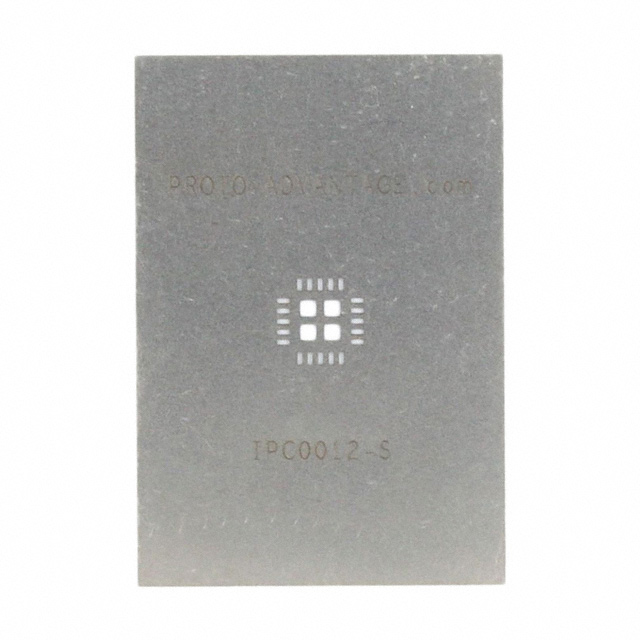

Chip Quik, Inc. IPC0012-S

QFN-20 STENCIL

11.59

Chip Quik, Inc. IPC0082-S

QFN-20 0.5 MM PITCH 4.0 X 4.0 MM

11.59

Chip Quik, Inc. IPC0051-S

POWERSOIC-8/PSOP-8/HSOP-8 STENCI

11.59

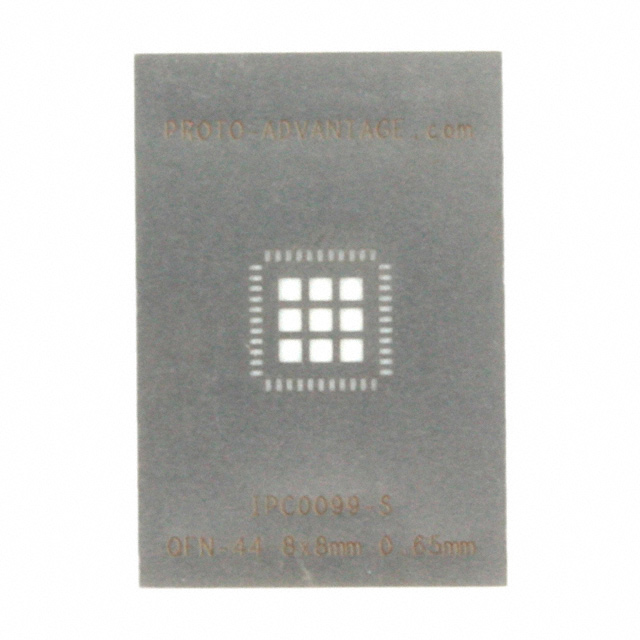

Chip Quik, Inc. IPC0099-S

QFN-44 STENCIL

11.59

Chip Quik, Inc. PA0009-S

SOIC-24 STENCIL

11.59

Chip Quik, Inc. PA0008-S

SOIC-20 STENCIL

11.59

Chip Quik, Inc. PA0102-S

LGA-16 STENCIL

11.59
