Solder Stencils, Templates

Solder Stencils and Templates are a mask that is used to apply solder paste in a specific area on a PCB board. The stencil types are BGA, CSP, DFN, DFN/SON, FPC/FFC, HSOP, HTQFP, HTSSOP, LED, LED/DFN, LED/PLCC, LGA, LLP, LQFP, LSOP, mini SOIC, MLP/DFN, MLP/MLF, MQFP, MSOP, PLCC, PLCC/JLCC, POS, PowerQSOP, PowerSOIC, PowerSSO, PowerSSOP, PQFP, PSOP, QFN, QFN/LFCSP, QSOP, RN, RQFP, SOIC, SON, SOP, SOT/SC, SSOP, TO/DDPAK, TO/DPAK, TQFP, TSOC, TSOP, TSSOP, TVSOP, uMAX, VSOP, and VSSOP.

---

Chip Quik, Inc. IPC0167-S

SOP-36 (0.65MM PITCH, 12.8X7.5MM

11.59

Chip Quik, Inc. IPC0165-S

SON-6 (0.65MM PITCH, 2X2MM BODY)

11.59

Chip Quik, Inc. IPC0164-S

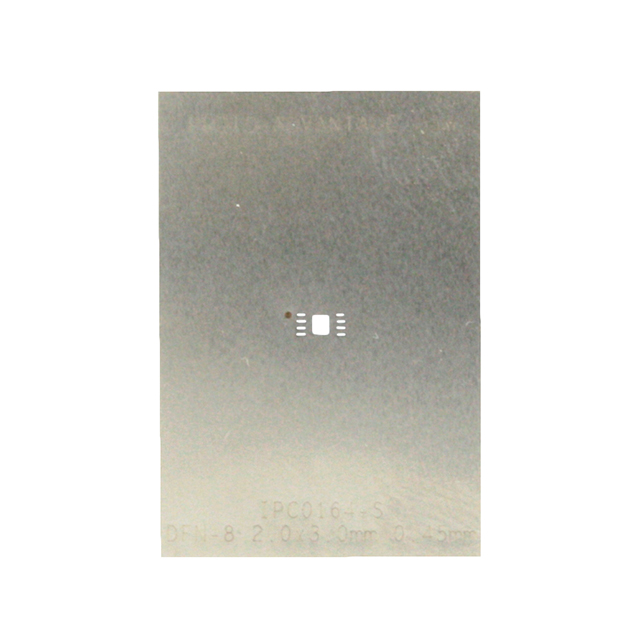

DFN-8 (0.45MM PITCH, 2X3MM BODY)

11.59

Chip Quik, Inc. IPC0163-S

SOIC-32 (1.27MM PITCH, 20.4X11.3

11.59

Chip Quik, Inc. IPC0162-S

SSOP-24 (1MM PITCH, 13X6MM BODY)

11.59

Chip Quik, Inc. IPC0161-S

LGA-10 (0.65MM PITCH, 3X3MM BODY

11.59

Chip Quik, Inc. IPC0160-S

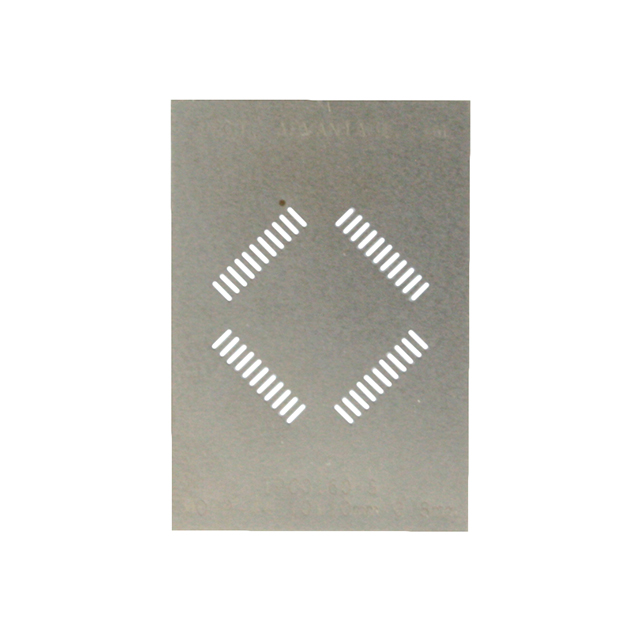

MQFP-44 (0.8MM PITCH, 10X10MM BO

11.59

Chip Quik, Inc. IPC0159-S

DFN-22 (0.5MM PITCH, 6X3MM BODY)

11.59
