Solder Stencils, Templates

Solder Stencils and Templates are a mask that is used to apply solder paste in a specific area on a PCB board. The stencil types are BGA, CSP, DFN, DFN/SON, FPC/FFC, HSOP, HTQFP, HTSSOP, LED, LED/DFN, LED/PLCC, LGA, LLP, LQFP, LSOP, mini SOIC, MLP/DFN, MLP/MLF, MQFP, MSOP, PLCC, PLCC/JLCC, POS, PowerQSOP, PowerSOIC, PowerSSO, PowerSSOP, PQFP, PSOP, QFN, QFN/LFCSP, QSOP, RN, RQFP, SOIC, SON, SOP, SOT/SC, SSOP, TO/DDPAK, TO/DPAK, TQFP, TSOC, TSOP, TSSOP, TVSOP, uMAX, VSOP, and VSSOP.

---

Chip Quik, Inc. PA0184-S

TO-263-3 STENCIL

11.59

Chip Quik, Inc. PA0183-S

TO-252 STENCIL

11.59

Chip Quik, Inc. PA0174-S

SOT-223-4 STENCIL

11.59

Chip Quik, Inc. PA0066-S

QFN-28 STENCIL

11.59

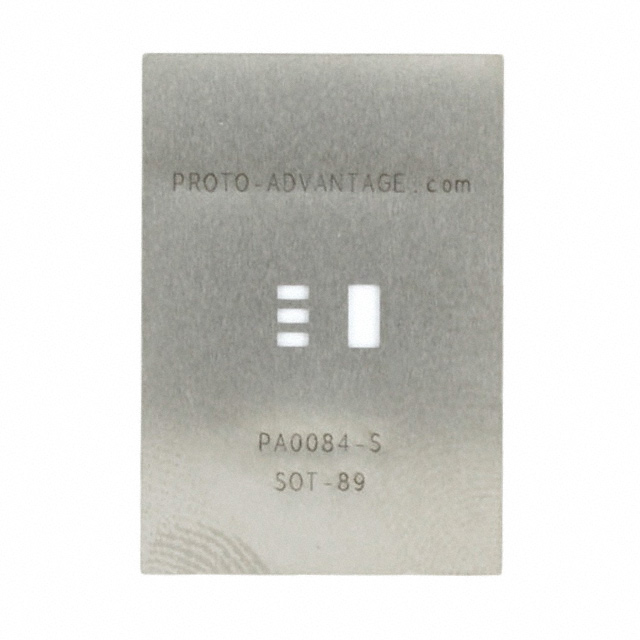

Chip Quik, Inc. PA0084-S

SOT-89 STENCIL

11.59

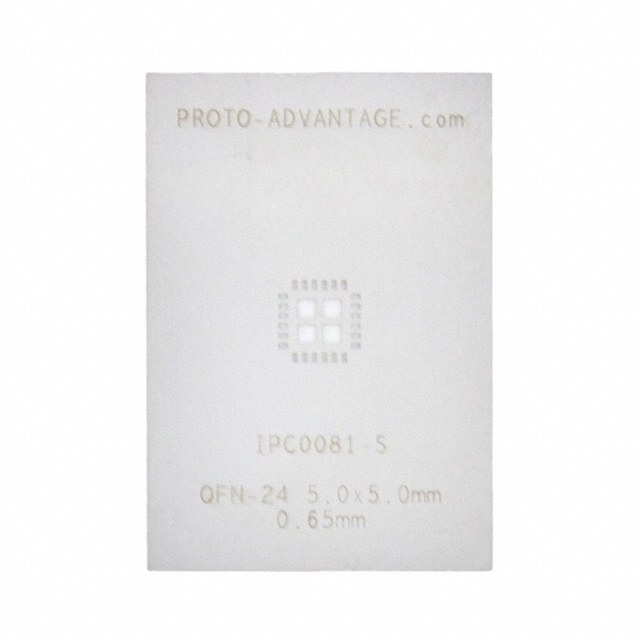

Chip Quik, Inc. IPC0081-S

QFN-24 STENCIL

11.59

Chip Quik, Inc. IPC0005-S

QFN-14 STENCIL

11.59

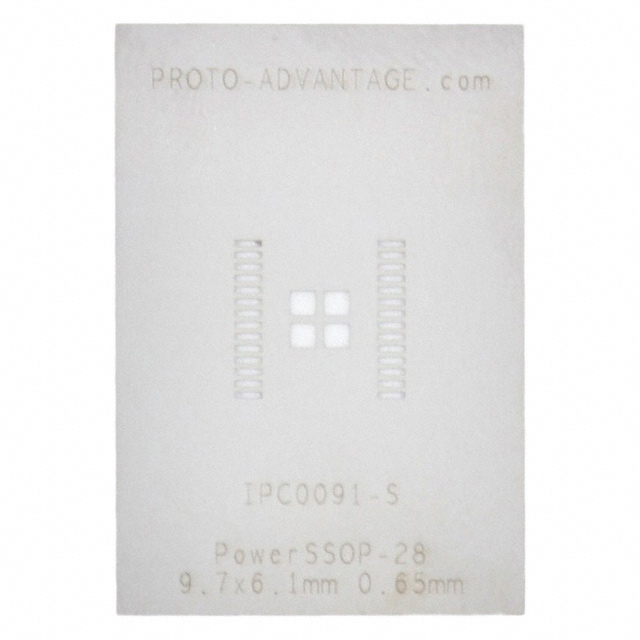

Chip Quik, Inc. IPC0091-S

POWERSSOP-28 STENCIL

11.59
