PTC Resettable Fuses

PTC Resettable Fuses are designed to stop current flow when it exceeds a certain limit (overcurrent protection). The Fuses work by increasing its resistance as its temperature rises due to the current increase. The trip current ranges from 14 mA to 50 A with the Time to trip ranging from 8 ms to 90 s. PTC = Positive Temperature Coefficient.

---

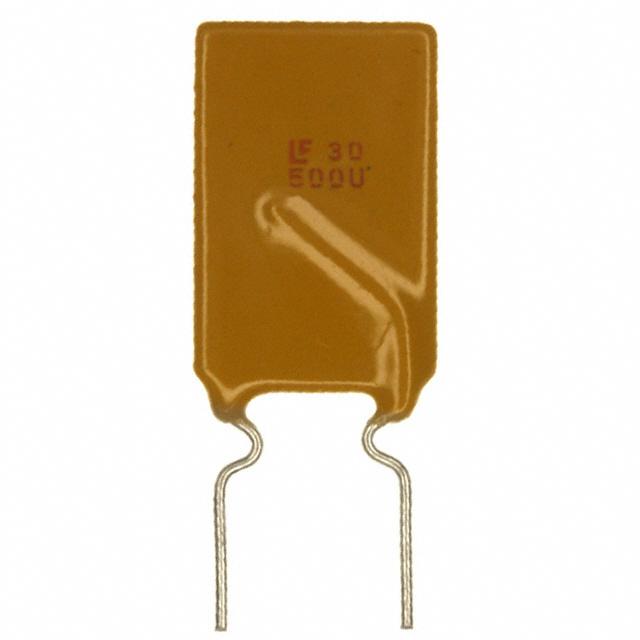

Littelfuse Inc. 30R500UF

PTC RESET FUSE 30V 5A RADIAL

0.63

Littelfuse Inc. LVR005NS

PTC RESET FUSE 240V 50MA RADIAL

0.6

Bourns, Inc. MF-R500

PTC RESET FUSE 30V 5A RADIAL

0.56

Littelfuse Inc. RXEF160

PTC RESET FUSE 72V 1.6A RADIAL

0.52

EPCOS (TDK) B59807A0090A062

PTC RESET FUSE 265V 15MA 1210

0

Littelfuse Inc. RUEF300

PTC RESET FUSE 30V 3A RADIAL

0.5

EPCOS (TDK) B59606A0110A062

PTC RESET FUSE 30V 90MA 1210

0

Littelfuse Inc. RUEF250

PTC RESET FUSE 30V 2.5A RADIAL

0.46
