PTC Resettable Fuses

PTC Resettable Fuses are designed to stop current flow when it exceeds a certain limit (overcurrent protection). The Fuses work by increasing its resistance as its temperature rises due to the current increase. The trip current ranges from 14 mA to 50 A with the Time to trip ranging from 8 ms to 90 s. PTC = Positive Temperature Coefficient.

---

EPCOS (TDK) B59885C0120A070

PTC RESET FUSE 550V 15MA RADIAL

1.6

Bourns, Inc. MF-RHT1300-0

PTC RESET FUSE 16V 13A RADIAL

1.44

EPCOS (TDK) B59890C0120A070

PTC RESET FUSE 265V 30MA RADIAL

1.39

Littelfuse Inc. LVR125S-240

PTC RESET FUSE 240V 1.25A RADIAL

1.38

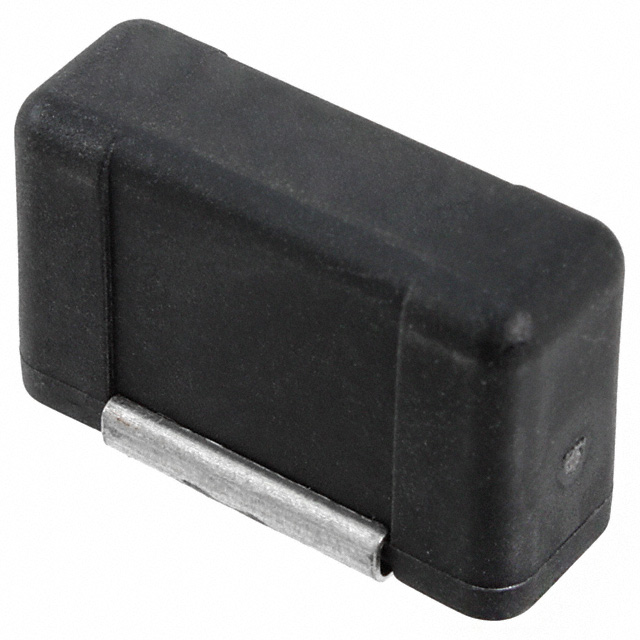

Littelfuse Inc. TS600-170F-2

PTC RESET FUSE 60V 170MA 2SMD

0

Vishay BC Components PTCCL07H141HBE

PTC RESET FUSE 265V 140MA RADIAL

1.29

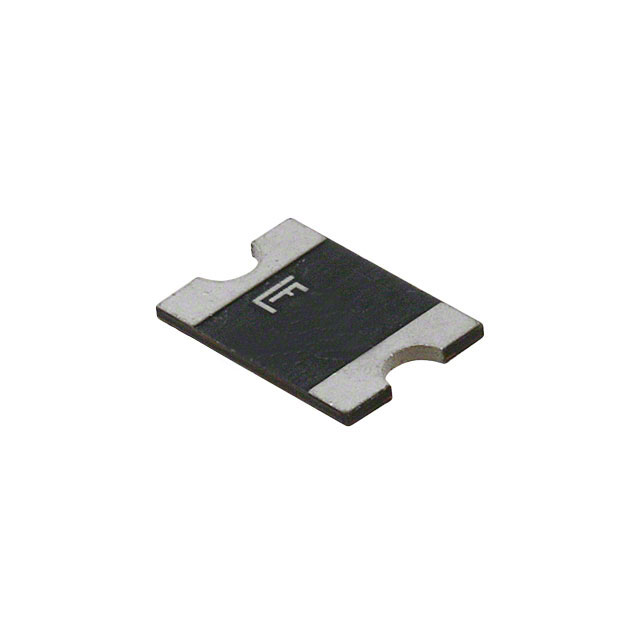

Littelfuse Inc. 2920L700SLPR

PTC RESET FUSE 6V 7A 2920

0

EPCOS (TDK) B59870C0120A070

PTC RESET FUSE 265V 100MA RADIAL

1.86
