PTC Resettable Fuses

PTC Resettable Fuses are designed to stop current flow when it exceeds a certain limit (overcurrent protection). The Fuses work by increasing its resistance as its temperature rises due to the current increase. The trip current ranges from 14 mA to 50 A with the Time to trip ranging from 8 ms to 90 s. PTC = Positive Temperature Coefficient.

---

EPCOS (TDK) B59965C0160A070

PTC RESET FUSE 20V 700MA RADIAL

1.5

Bel Fuse, Inc. 0ZRN1500FF1A

RADIAL PTC RESETTABLE FUSE, 15A

1.27

Bel Fuse, Inc. 0ZRN1400FF1A

RADIAL PTC RESETTABLE FUSE, 14A

1.25

Murata Electronics North America PTGL09AR390M9C61B0

PTC RESET FUSE 265V 130MA RADIAL

1.16

Murata Electronics North America PTGL07AR330M6A51B0

PTC RESET FUSE 140V 130MA RADIAL

1.1

Bel Fuse, Inc. 0ZRN1300FF1A

RADIAL PTC RESETTABLE FUSE, 13A

1.04

Bel Fuse, Inc. 0ZRN1100FF1A

RADIAL PTC RESETTABLE FUSE, 11A

1.04

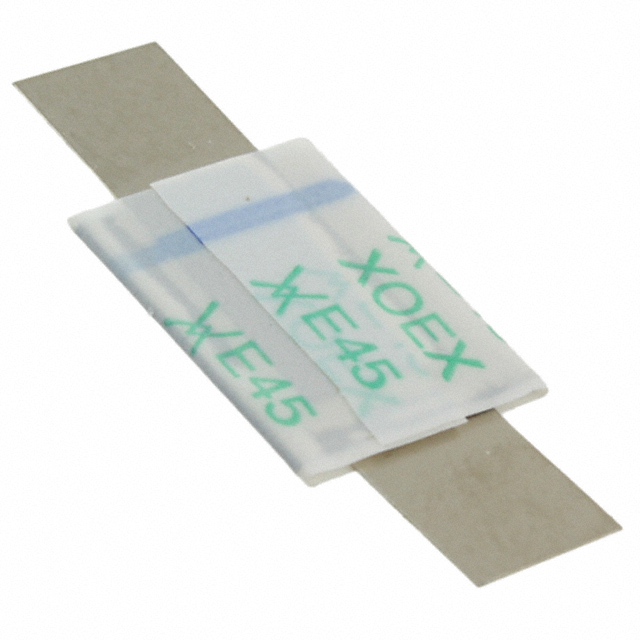

Littelfuse Inc. LR4-450F

PTC RESET FUSE 20V 4.5A STRAP

0.99
