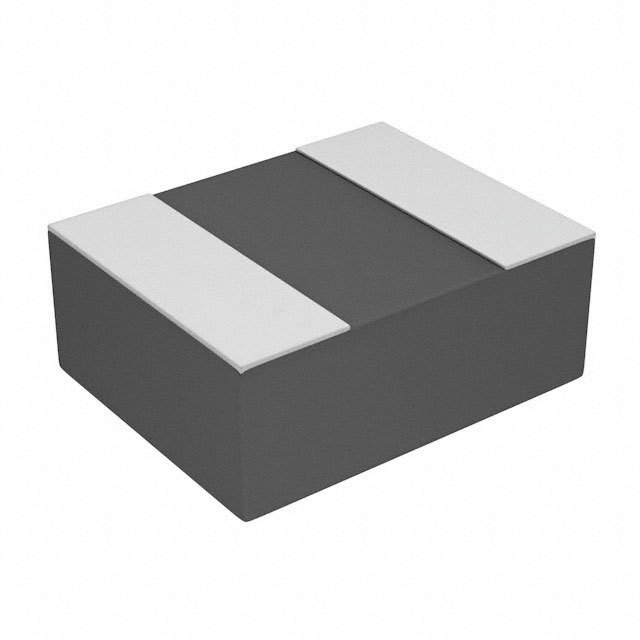

Images are for reference only. See Product Specifications for product details
Wurth Electronics Inc. 74438323100
FIXED IND 10UH 600MA 843 MOHM
- Manufacturer
- Wurth Electronics Inc.
- Datasheet
- Price
- 0
- Stock
- 6131
Product Details
- Inductance
- 10µH
- Supplier Device Package
- -
- Part Status
- Active
- Frequency - Self Resonant
- 10MHz
- Mounting Type
- Surface Mount
- Inductance Frequency - Test
- 100kHz
- Package / Case
- Nonstandard
- Type
- Wirewound
- Material - Core
- Carbonyl Powder
- Series
- SRP1038A
- Base Part Number
- SRP1038A
- Ratings
- AEC-Q200
- Size / Dimension
- 0.433" L x 0.394" W (11.00mm x 10.00mm)
- Features
- -
- DC Resistance (DCR)
- 30mOhm Max
- Q @ Freq
- 20 @ 100kHz
- Current - Saturation
- 12A
- Packaging
- Digi-Reel®
- Current Rating (Amps)
- 7.5A
- Shielding
- Shielded
- Height - Seated (Max)
- 0.157" (4.00mm)
- Tolerance
- ±20%
- Operating Temperature
- -40°C ~ 150°C
