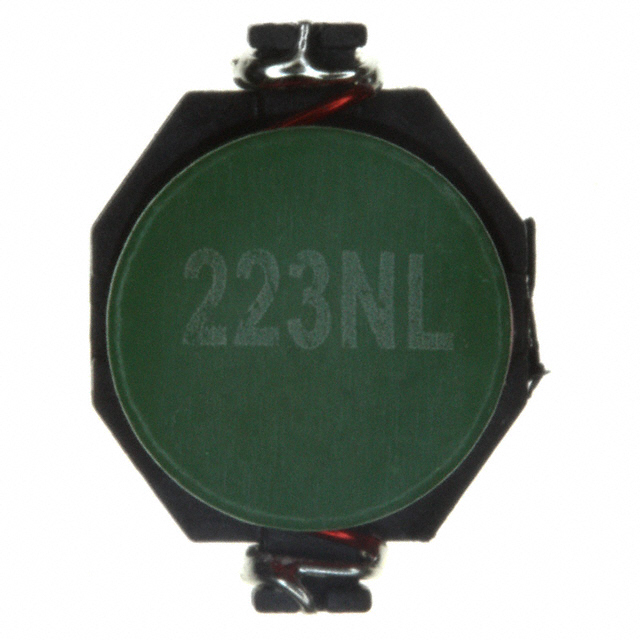

Images are for reference only. See Product Specifications for product details
Pulse Electronics Power P0751.223NLT
FIXED IND 22UH 2.6A 114 MOHM SMD
- Manufacturer
- Pulse Electronics Power
- Datasheet
- Price
- 0
- Stock
- 5772
Product Details
- Mounting Type
- Surface Mount
- Package / Case
- 1812 (4532 Metric)
- Material - Core
- Ferrite
- Type
- Wirewound
- Size / Dimension
- 0.177" L x 0.126" W (4.50mm x 3.20mm)
- Series
- WE-LQ
- DC Resistance (DCR)
- 30Ohm Max
- Ratings
- -
- Current - Saturation
- 160mA
- Q @ Freq
- 28 @ 252kHz
- Current Rating (Amps)
- 70mA
- Packaging
- Digi-Reel®
- Height - Seated (Max)
- 0.114" (2.90mm)
- Shielding
- Unshielded
- Operating Temperature
- -40°C ~ 125°C
- Tolerance
- ±10%
- Supplier Device Package
- 1812
- Inductance
- 1mH
- Frequency - Self Resonant
- 2MHz
- Part Status
- Active
- Inductance Frequency - Test
- 1kHz
