Images are for reference only. See Product Specifications for product details

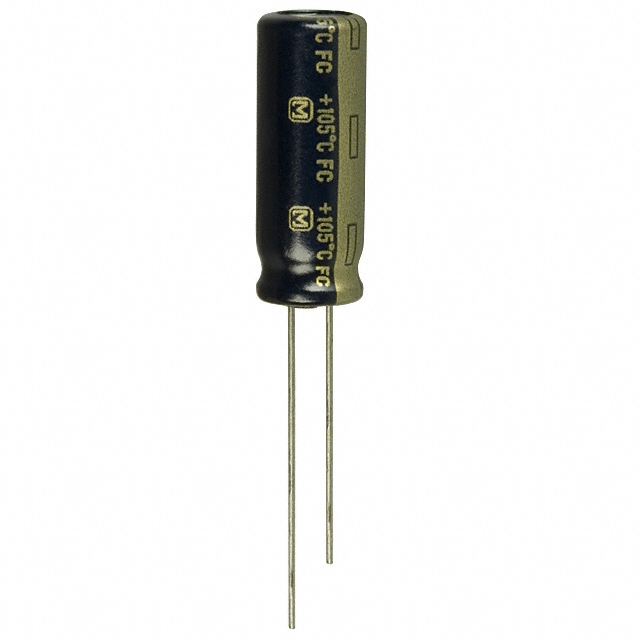

Panasonic Electronic Components EEU-FC1E221BJ
CAP ALUM 220UF 20% 25V RADIAL
- Manufacturer
- Panasonic Electronic Components
- Datasheet
- Price
- 0.42
- Stock
- 0
Product Details
- Tolerance
- ±20%
- Operating Temperature
- -55°C ~ 105°C
- Capacitance
- 100µF
- Surface Mount Land Size
- -
- Part Status
- Active
- Ripple Current @ Low Frequency
- 360.8mA @ 120Hz
- Applications
- Automotive
- Ripple Current @ High Frequency
- 555mA @ 100kHz
- Lead Spacing
- 0.197" (5.00mm)
- ESR (Equivalent Series Resistance)
- -
- Polarization
- Polar
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
- Series
- FC
- Voltage - Rated
- 35V
- Ratings
- AEC-Q200
- Lifetime @ Temp.
- 2000 Hrs @ 105°C
- Impedance
- 117 mOhms
- Size / Dimension
- 0.315" Dia (8.00mm)
- Packaging
- Cut Tape (CT)
- Height - Seated (Max)
- 0.650" (16.50mm)
