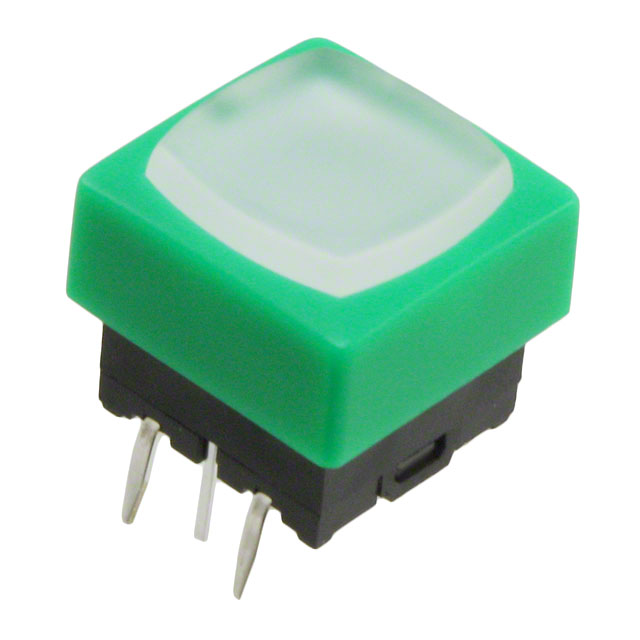

Images are for reference only. See Product Specifications for product details
NKK Switches JB15LPF-BF
SWITCH TACTILE SPST-NO 0.05A 24V
- Manufacturer
- NKK Switches
- Datasheet
- Price
- 4.5
- Stock
- 0
Product Details
- Packaging
- Tray
- Actuator Orientation
- Top Actuated
- Part Status
- Active
- Operating Temperature
- -40°C ~ 160°C
- Illumination
- Illuminated
- Contact Rating @ Voltage
- 0.05A @ 24VDC
- Actuator Type
- Plunger for Cap
- Illumination Type, Color
- LED, Red/Green
- Mounting Type
- Through Hole
- Actuator Length, Right Angle
- -
- Switch Travel
- 1.00mm
- Illumination Voltage (Nominal)
- 2.0, 2.2 VDC
- Mechanical Life
- 10,000,000 Cycles
- Actuator Height off PCB, Vertical
- 6.40mm
- Operating Force
- 200gf
- Series
- Multimec® 5
- Switch Function
- Off-Mom
- Circuit
- SPST-NO
- Actuator Material
- Polyphenylene Sulfide (PPS)
- Outline
- 10.10mm x 10.10mm
- Termination Style
- PC Pin
- Features
- Sealed - Flux Protection
- Ingress Protection
- IP67 - Dust Tight, Waterproof
