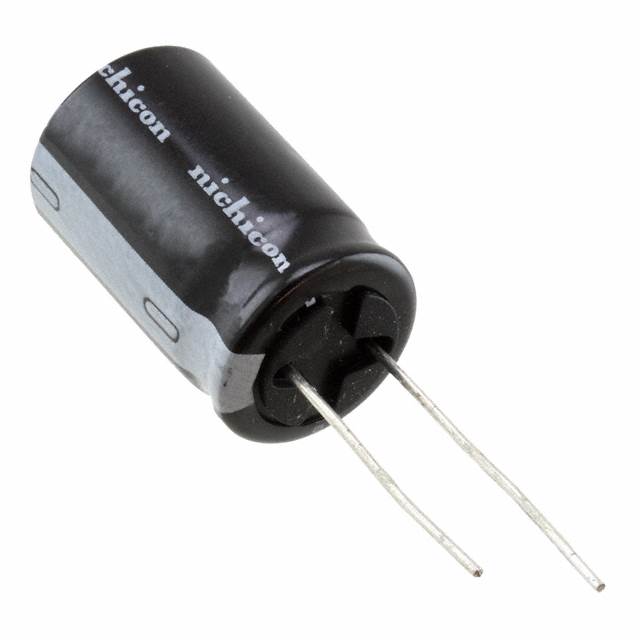

Images are for reference only. See Product Specifications for product details
Nichicon UVY1E472MHD1TN
CAP ALUM 4700UF 20% 25V RADIAL
- Manufacturer
- Nichicon
- Datasheet
- Price
- 1.83
- Stock
- 619
Product Details
- Voltage - Rated
- 25V
- Series
- TP
- Lifetime @ Temp.
- 3000 Hrs @ 125°C
- Ratings
- AEC-Q200
- Size / Dimension
- 0.492" Dia (12.50mm)
- Packaging
- Tape & Box (TB)
- Height - Seated (Max)
- 0.866" (22.00mm)
- Tolerance
- ±20%
- Operating Temperature
- -40°C ~ 135°C
- Capacitance
- 1000µF
- Surface Mount Land Size
- -
- Part Status
- Active
- Ripple Current @ Low Frequency
- 1.395A @ 120Hz
- Applications
- Automotive
- Ripple Current @ High Frequency
- 1.49A @ 100kHz
- Lead Spacing
- 0.197" (5.00mm)
- ESR (Equivalent Series Resistance)
- -
- Polarization
- Polar
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
