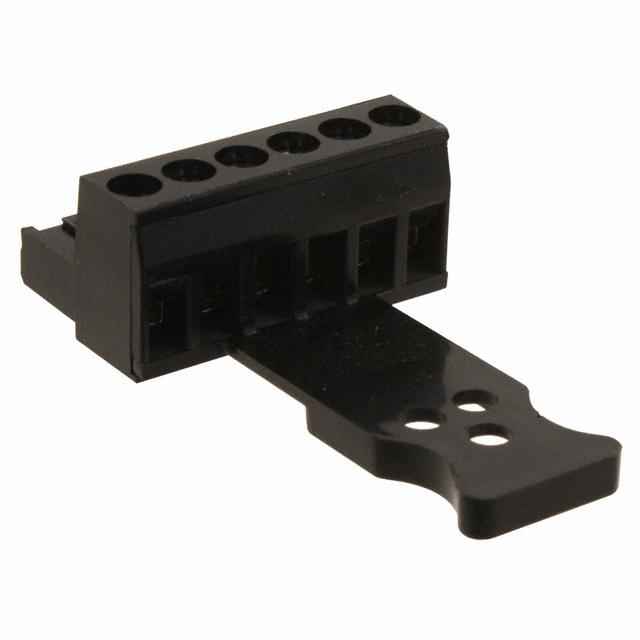

Images are for reference only. See Product Specifications for product details
Amphenol Pcd ELFP0621P0
TERM BLOCK PLUG 6POS STR 5.08MM
- Manufacturer
- Amphenol Pcd
- Datasheet
- Price
- 6.76
- Stock
- 83
Product Details
- Pitch
- 0.200" (5.08mm)
- Plug Wire Entry
- 180°
- Contact Mating Finish
- Tin
- Series
- Omnimate SL
- Contact Material
- Copper Alloy
- Operating Temperature
- -50°C ~ 100°C
- Features
- -
- Number of Levels
- 1
- Wire Gauge or Range - AWG
- 12-26 AWG
- Packaging
- Bulk
- Insulation Height
- 0.602" (15.29mm)
- Wire Gauge or Range - mm²
- 0.2-2.5mm²
- Screw Size
- -
- Termination Style
- Screwless - Spring Cage, Tension Clamp
- Material Flammability Rating
- UL94 V-0
- Part Status
- Active
- Wire Strip Length
- 10mm
- Current - UL
- 15A
- Header Orientation
- -
- Voltage - UL
- 300V
- Ingress Protection
- -
- Current - IEC
- 23A
- Contact Tail Length
- -
- Mounting Type
- Free Hanging (In-Line)
- Dielectric Material
- Polybutylene Terephthalate (PBT)
- Type
- Plug, Male Pins
- Voltage - IEC
- 400V
- Number of Positions
- 6
- Color
- Black
- Torque - Screw
- -
- Positions Per Level
- 6
